Industrial 4x4 Video Processor with Internal Heat Dissipation Audio De-embedding 12+ Screen Support
Bitvisus Professional Audio Video & Lighting 4K Video Processor

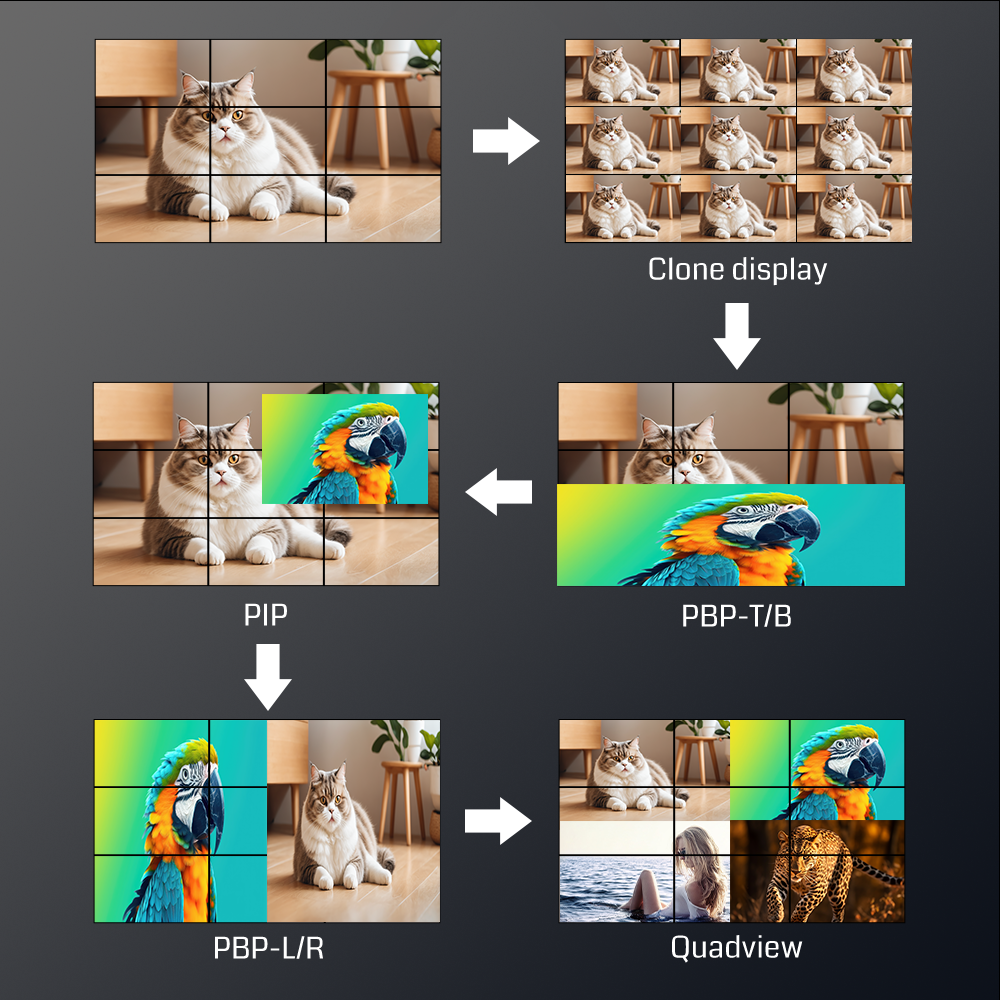

The BIT-VP-U1-MD416 is a high-performance 4K60 video processor developed and manufactured by Bitvisus. Featuring 4-channel 4K60 inputs and 16-channel 1080P60 outputs, this processor enables seamless multi-display splicing and simultaneous display of four different images. Designed for professional applications, it delivers exceptional visual quality for commercial displays, monitoring systems, command centers, and control rooms.
Technical Specifications
| Input Interface |
4×HDMI 2.0, 2×DP 1.2 |
| Input Maximum Pixel Clock Frequency |
600MHz |
| Input Resolution |
3840×2160P60 |
| Color Depth |
8bit |
| Color Format |
RGB444, YUV444, YUV422, YUV420 |
| Output Interface |
16×HDMI 1.4 |
| Output Maximum Pixel Clock Frequency |
148.5MHz |
| Output Resolution |
1920×1080P60 |
| Control Method |
Remote control, Pushbutton, RS232, Windows host computer |
| Audio |
HDMI Audio Follow-On, 3.5MM Audio Separation |
| Power Supply |
220V |
| Power Consumption |
50W |
| Storage/Operating Temperature |
-10～50ºC/0～50ºC |
| Product Dimensions |
482.6mm×250mm×59mm |
| Packaging Dimensions |
545mm×465mm×120mm |
| Product Weight |
2KG |
| Package Weight |
3KG |
Package Contents
1 × 220V Power cable
1 × HDMI cable or DP cable
1 × Blue network cable
1 × IR infrared head
1 × Remote control
1 × USB A-B cable
Warranty & Support
3 Years Warranty with comprehensive after-sales service support

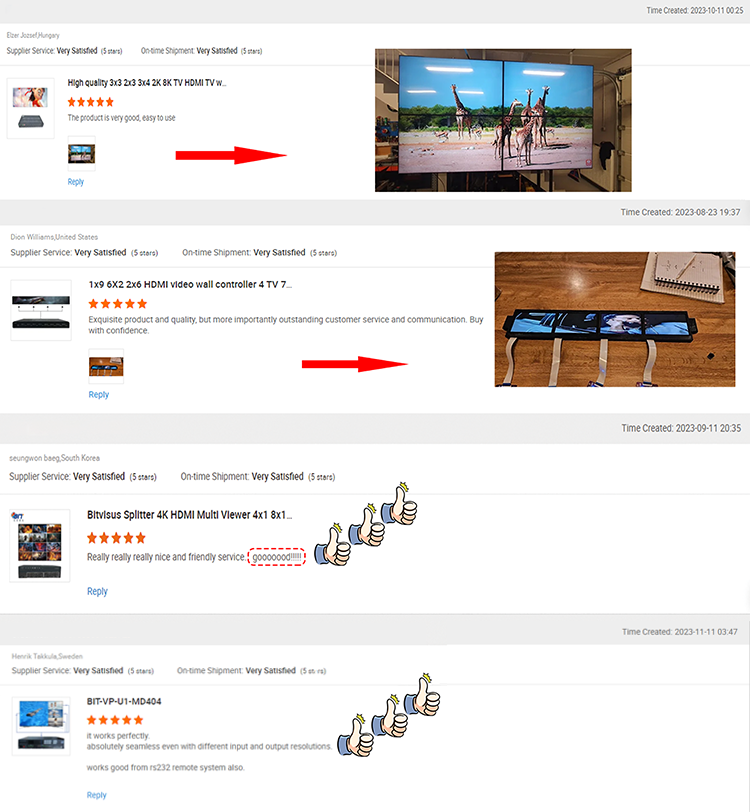

Customer Reviews
