BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display

Brand Name : Bitvisus

Model Number : BIT-VWC-436

Certification : CE/FCC/RoHS

Place of Origin : Guangdong China

MOQ : 1

Price : USD1098-1513

Payment Terms : T/T,PayPal

Supply Ability : 1 unit,3 days;10 units,15 days

Delivery Time : 7 days

Packaging Details : 570mm X 340mm X 180mm

Input Interface : 4 X HDMI 2.0, 4 X DP 2.0 (HDMI/DP Either/or Input)

Input Max Resolution : 17280x4320P30

Output Interface : 36xHDMI 1.3

Output Resolution : 1920x1080P60

Color Depth : 8bit

Color Format : RGB444, YUV444, YUV422, YUV420

Product Dimensions : 483mm X 200mm X 100mm

Control Method : Remote Control, RS232 Serial Port, Web

Audio Output : HDMI Audio Follow-Out, 3.5MM Audio Separation

Brightness : 1000cd

Contact Now

BIT-VWC-436 8K60 Video Wall Controller
4 In 36 Out HDMI/DP Point-to-Point Splicing Processor FPGA 1080P60 for Command Center
Product Overview
The BIT-VWC-436 is a professional 8K60 video wall processor featuring a modular card design that supports 1 to 4 cards with 32 outputs and 17280x4320 input capability. This advanced processor creates giant seamless canvas displays for various professional applications.
Key Features
  • Supports 4-way HDMI/DP input and 36-way HDMI output
  • Single device configuration: 4 inputs, 36 outputs with flexible combination options
  • Maximum input resolution: 17280 × 4320P30, 11520 × 6480P30 with backward compatibility
  • Single channel output supports up to 1920 × 1080P60
  • Fixed EDID support with customizable resolution for independent graphics cards

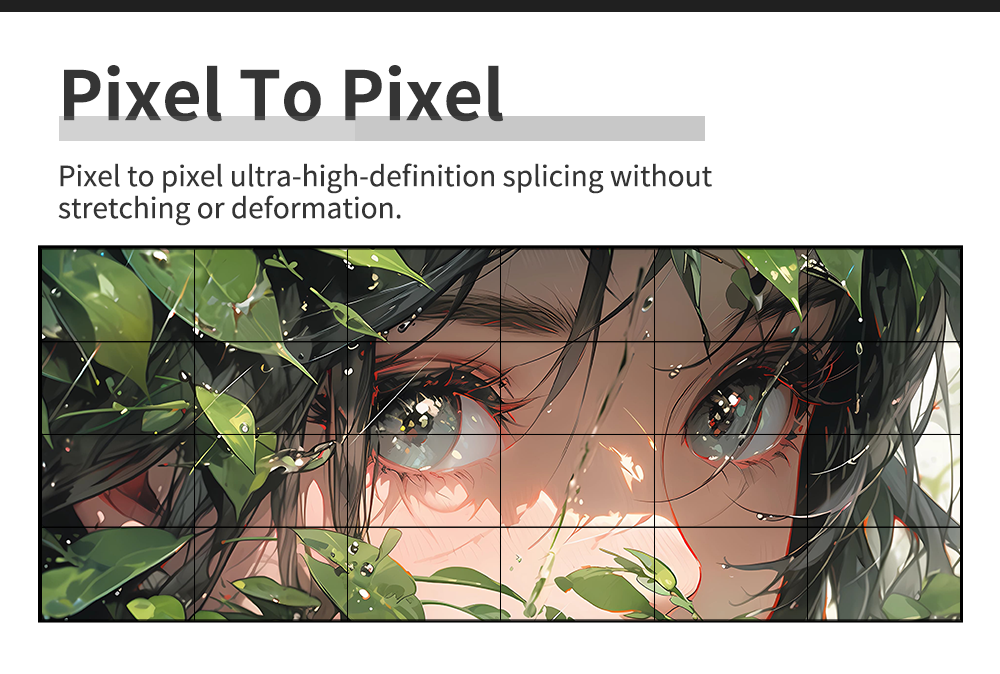

  • Point-to-point splicing without stretching, distortion, or compression
  • Output supports 180° rotation for first line
  • Multiple control methods: infrared remote, RS232 serial port, network WEB interface
  • Software standby for better control, management, and safety
  • Compatible with open window software for multi-screen display
  • 28nm process high-end programmable FPGA chip for ultra-fast processing
  • Low power consumption with energy-saving design and no external cooling required
Product Images
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
BIT-VWC-436 8K60 Video Wall Controller with 4 Input 36 Output HDMI/DP and FPGA Chip for Seamless Multi-Screen Display
Technical Specifications
Product Name BIT-VWC-436
Input Interface 4×HDMI 2.0, 4×DP 2.0 (HDMI/DP either/or input)

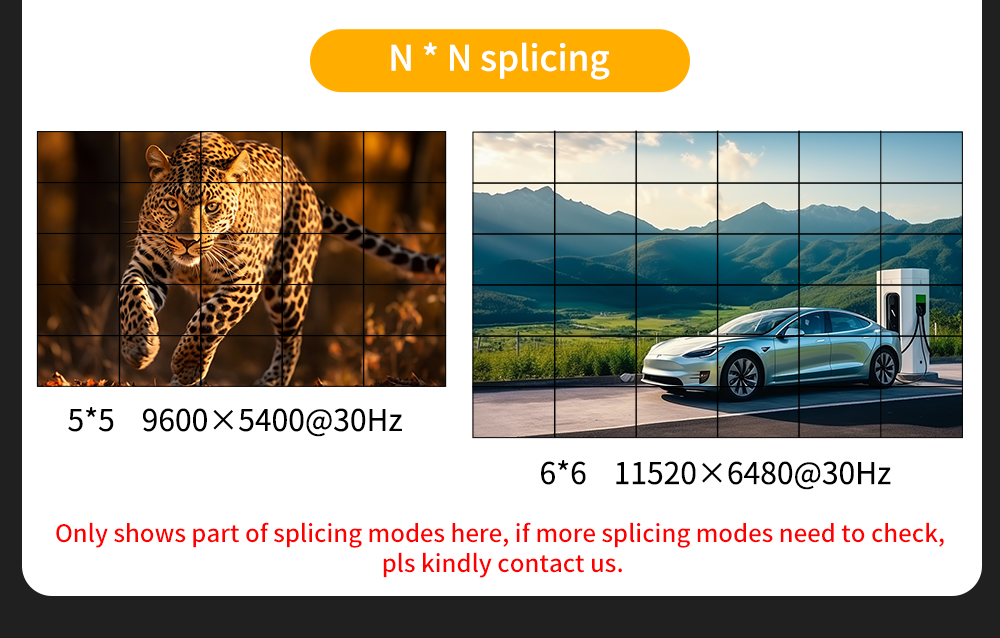

Input Maximum Resolution 4×9: 17280×4230P30
5×7: 13440×5400P30
6×6: 115200×6480P30
Color Format RGB444, YUV444, YUV422, YUV420
Output Interface 36×HDMI 1.3
Output Resolution 1920×1080P60
Control Method Remote Control, RS232 Serial Port, Web
Audio HDMI Audio Follow-Out, 3.5MM Audio Separation
Power Supply 220V
Power Consumption 80W
Product Dimensions L×W×H: 483mm×200mm×100mm
Package Weight 7.5KG
Accessory List 1×220V power cord, 4×HDMI cable or DP cable, 1×Phoenix terminal, 1×Blue network cable, 1×IR infrared head, 1×Remote control
After-sales Service 3 years
Applications
Ideal for meeting rooms and conference centers, command centers, monitoring rooms, commercial displays and advertising, public information dissemination, museums and exhibition halls, and other professional display environments.
Frequently Asked Questions
Why Choose Bitvisus?
We maintain our own warehouse to ensure shipping within 48 hours after payment (excluding weekends and holidays). We offer OEM/ODM services and are a leading manufacturer in the video wall processor field.
How to Order?
Contact us via email or chat with your requirements. We will provide a proforma invoice based on your order request. After payment confirmation, goods will be delivered promptly.
Warranty & After-sale Service
Our products come with 12 months warranty and lifetime service support. Returns or exchanges are available for faulty, damaged, or incorrect model items.
Shipment & Payment
Payment methods: T/T, Visa, PayPal, Western Union, L/C. Shipping options: DHL, UPS, EMS, FedEx, Air freight, Sea freight.
