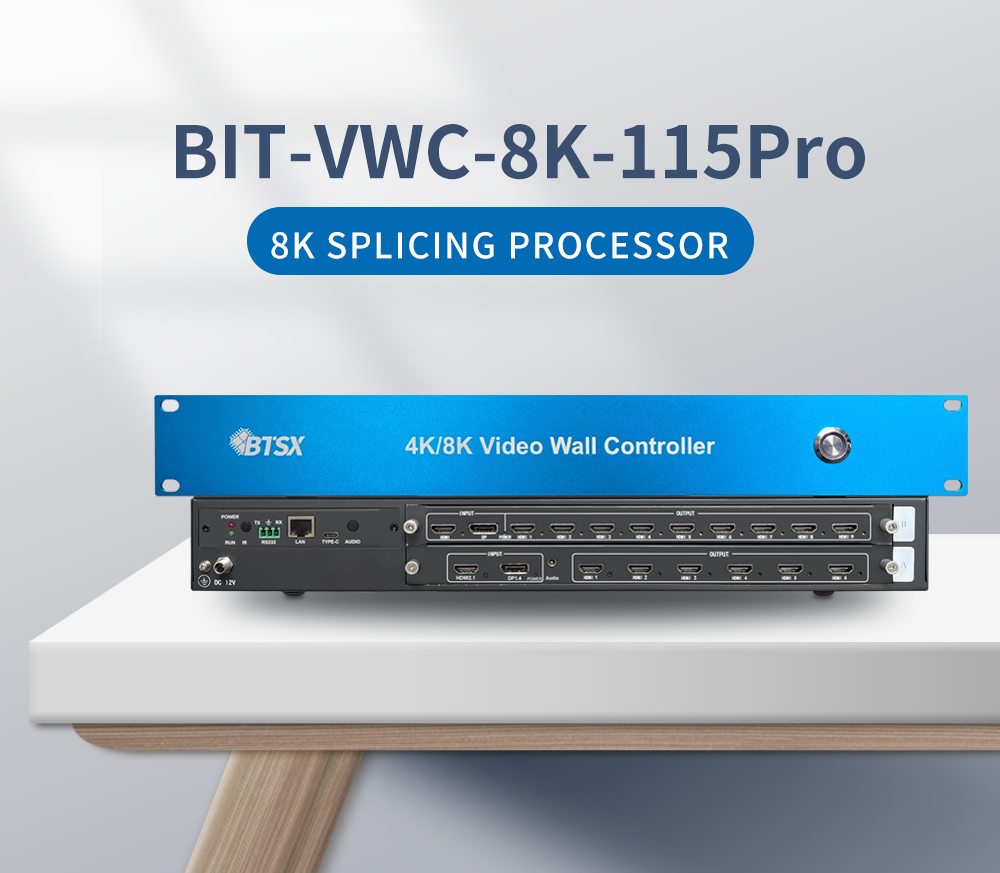

Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall

Place of Origin : Guangdong, China

MOQ : 1

Price : CN¥4,658.38-6,411.31

Input Interface : 1 X HDMI 2.1, 1 X DP 1.4

Output Interface : 15 X HDMI 1.4

Input Pixel Clock : 1200MHz

Output Pixel Clock : 165MHz

Output Resolution : 1920×1200P60, 1920×1080P60

Power Supply : DC 12V5A

Power Consumption : 48W

Package Weight : 2.6KG

Package Dimensions : 530mm×260mm×80mm

Operating Temperature : 0～50ºC

Storage Temperature : -10～50ºC

Control Mode : Serial Port RS232, Network Port WEB

HDCP Support : HDCP 2.2

Material : Metal

PCB Layers : 6-layer

Contact Now

Product Description

Product Characteristics

1.Supports one 8K signal input, with the option to choose between HDMI 2.1 and DP 1.4, offering diverse interface options to ensure clear images with rich details.

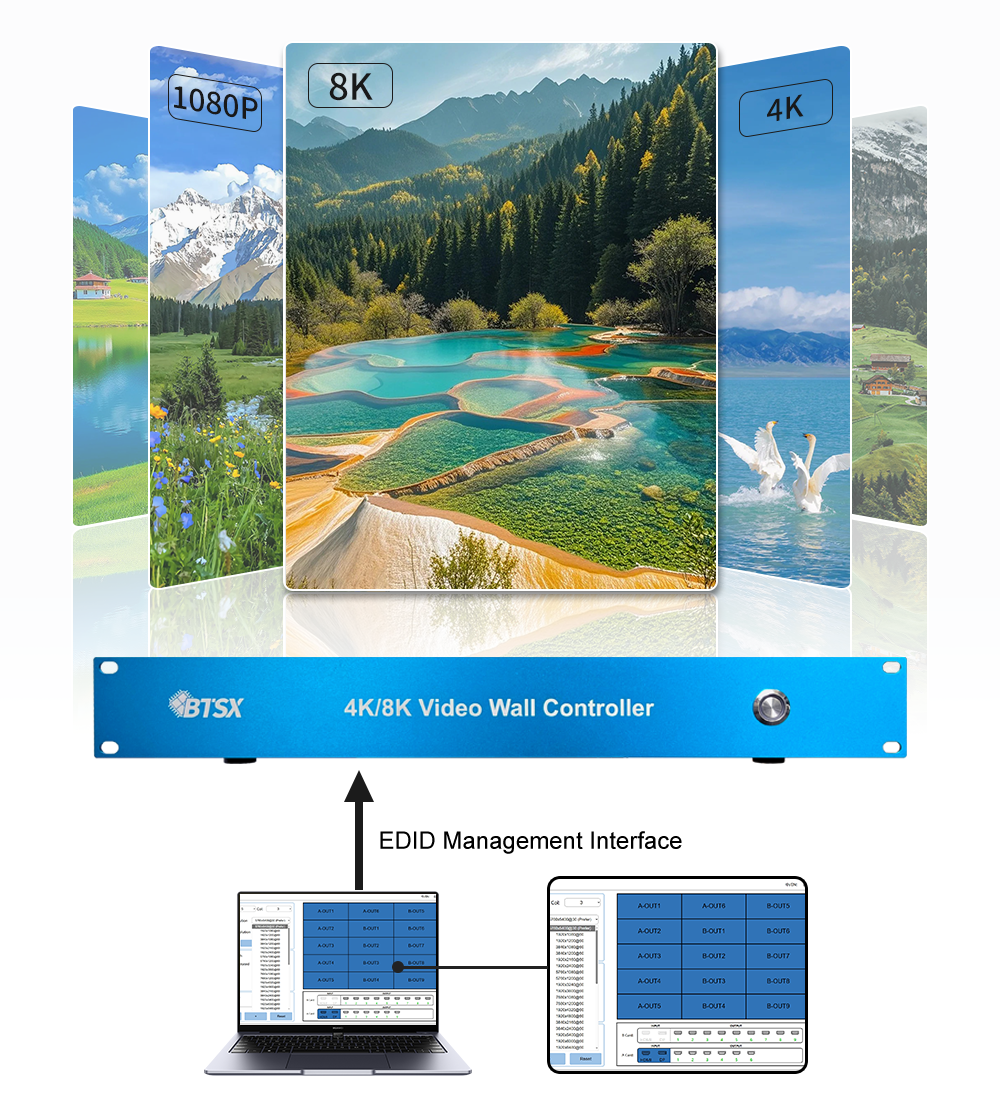

2.Supports 1080P60 and 1200P60 output, compatible with a variety of display devices and resolution requirements. It can be flexibly adjusted according to specific application needs and equipment configurations, providing more choices and adaptability. 3.Ultra-high resolution support, with input up to 5760×6000P30. 4.Supports 1×N, N×1, and M×N point-to-point splicing without stretching or distortion, offering a wider field of view. 5.Supports EDID management.. 6.Support Serial Port RS232 Control, Network Port WEB Control; 7.Support Bezel setup and CEC control; 8.Utilizes high-end programmable FPGA chips with 28nm process technology and a full hardware real-time processing architecture, ensuring ultra-fast processing speed without delay. 9.Industrial-grade design with thickened 6-layer PCB boards and 16KV strong anti-static capability, providing superior product stability.. 10.Supports parallel use to meet the real-time display needs of large screens. 11.Low power consumption and energy-saving design, with overheat protection and anti-interference design. It uses materials with a thermal conductivity of 18W for internal heat dissipation, ensuring long-term stable operation of the equipment and suitability for long-term use in various environments. 12.When used with Bitvisus windowing software, it can achieve multi-picture display in 8K.

Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Specification
Product Name
BIT-VWC-8K-115
Input Interface
1×HDMI 2.1, 1×DP 1.4, (copper cable ≤ 3 meters)
Output Interface
15×HDMI 1.4 (copper cable ≤ 10 meters)
Input Maximum Pixel Clock Rate
1200MHz
Output Resolution
1920×1200P60、1920×1080P60
Control Mode
Serial Port RS232 Control, Network Port WEB Control
Power supply
DC 12V5A
Package Dimensions
L×W×H: 530mm×260mm×80mm
Package Weight
2.6KG
Storage/Operating Temperature
-10～50ºC/0～50ºC
Power Consumption
48W
Audio
Audio Output
After-sales service
3 years
Company Profile
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
Industrial Grade 8K60 Video Wall Controller with FPGA Real-Time Hardware and 15xHDMI Output for Large Screen Display Wall
FAQ
Why choose Bitvisus ?
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours afterpayment(weekends and holidays excluded). 2.0EM/ODM offered for our customers. 3.We have various pruduct that may suit for you, such as Yideo Wall controller, Mutiscreen ExpanderMuliviewer, Eibeded Proiector Fusion and so on, which proves that our company has sufficient R&Dexperience and product auality assurrance Shipment & payment 1.T/T Visa, PavPal, western Union, L/c available. 2.DHL,UPS, EMS, FedEx, Air freight, Sea freight supported. How to order? 1. Please send us an email or chat with us via TM, WHATS UP SKYPE and let us know your requirementsfor order details. 2. We will provide a proforma invoice to you based on your order requirements.3. Please check the Pl, if everything is OK, we will deliver the goods to you as soon as possible afterreceivina your payment.
