4K60 Video Wall Controller with 9 HDMI Outputs and RS232 IR Web Control for Multi-Screen Display

Name: 4K60 Video Wall Controller with 9 HDMI Outputs and RS232 IR Web Control for MultiScreen Display
Brand: Bitvisus
Price: 1 USD

Quality 4K60 Video Wall Controller with 9 HDMI Outputs and RS232 IR Web Control for Multi-Screen Display for sale

Brand Name : Bitvisus

Place of Origin : Guangdong, China

MOQ : 1

Price : Contact us

Model Number : BIT-MSE-209pro

Certification : CE,HDMI,HDCP,RoHS,FCC

Payment Terms : T/T,PayPal

Supply Ability : 1000

Delivery Time : 5-8 days

Packaging Details : 300x142x35 mm

Material : Metal

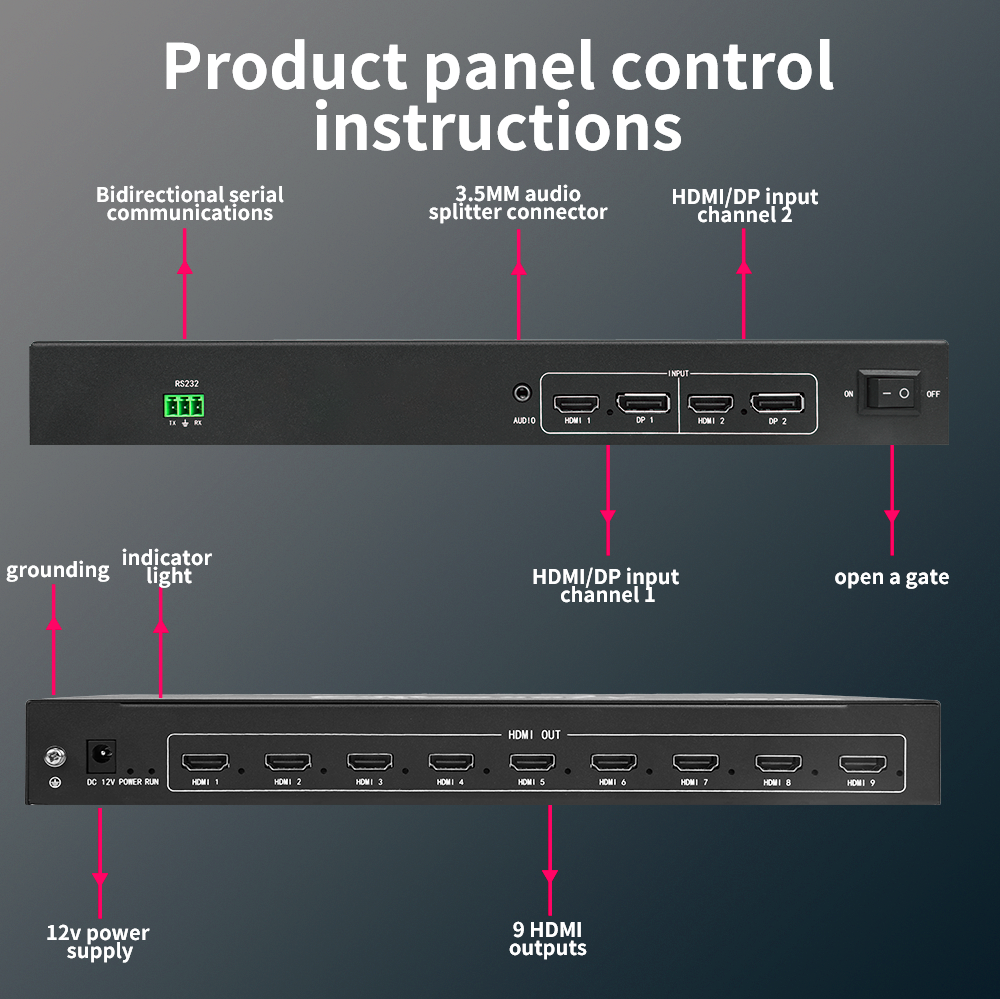

Input interface : 2-way HDMI 2.0/DP 1.2 (choose one of two)

Output port : 9-way HDMI 1.3

HDCP features : HDCP 2.2

Audio output : HDMI output 3.5mm audio port (audio separation)

Power supply : DC 12V/2A

Maximum power : 22W

Storage temperature : -10 to 50°C

Working temperature : 0 to 50°C

Product dimensions : 300x142x35 mm

Input resolution : 3840x2160@60Hz/3840x2400@60Hz

Output resolution : 1920x1080@60Hz (customizable)

Input color format : RGB888, 24bit

Net weight : 1.8 kg

Input video frequency : 600MHz

Contact Now

Product Overview

4K60 Any Splicing Mode Within 9 Screens Multi-Screen Viewer

⇒BIT-MSE-209Pro is an industrial-grade high-performance product developed specifically for the fusion of multi-desktop operation and multi-channel projection. It uses HDMI/DP input interface and HDMI output interface;

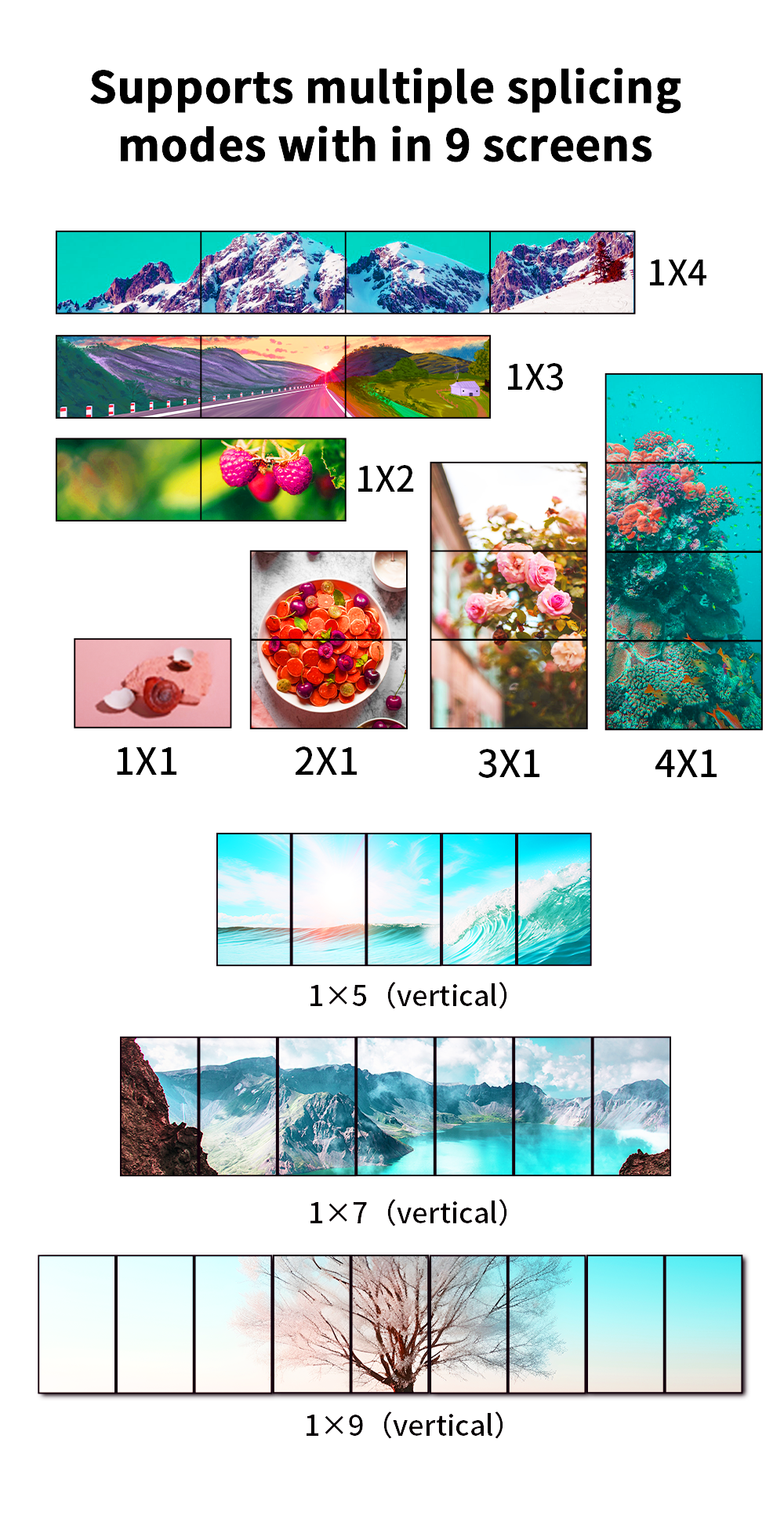

⇒The interface supports a maximum of 2 inputs and 9 outputs, and can be combined with any splicing mode within 9 screens;

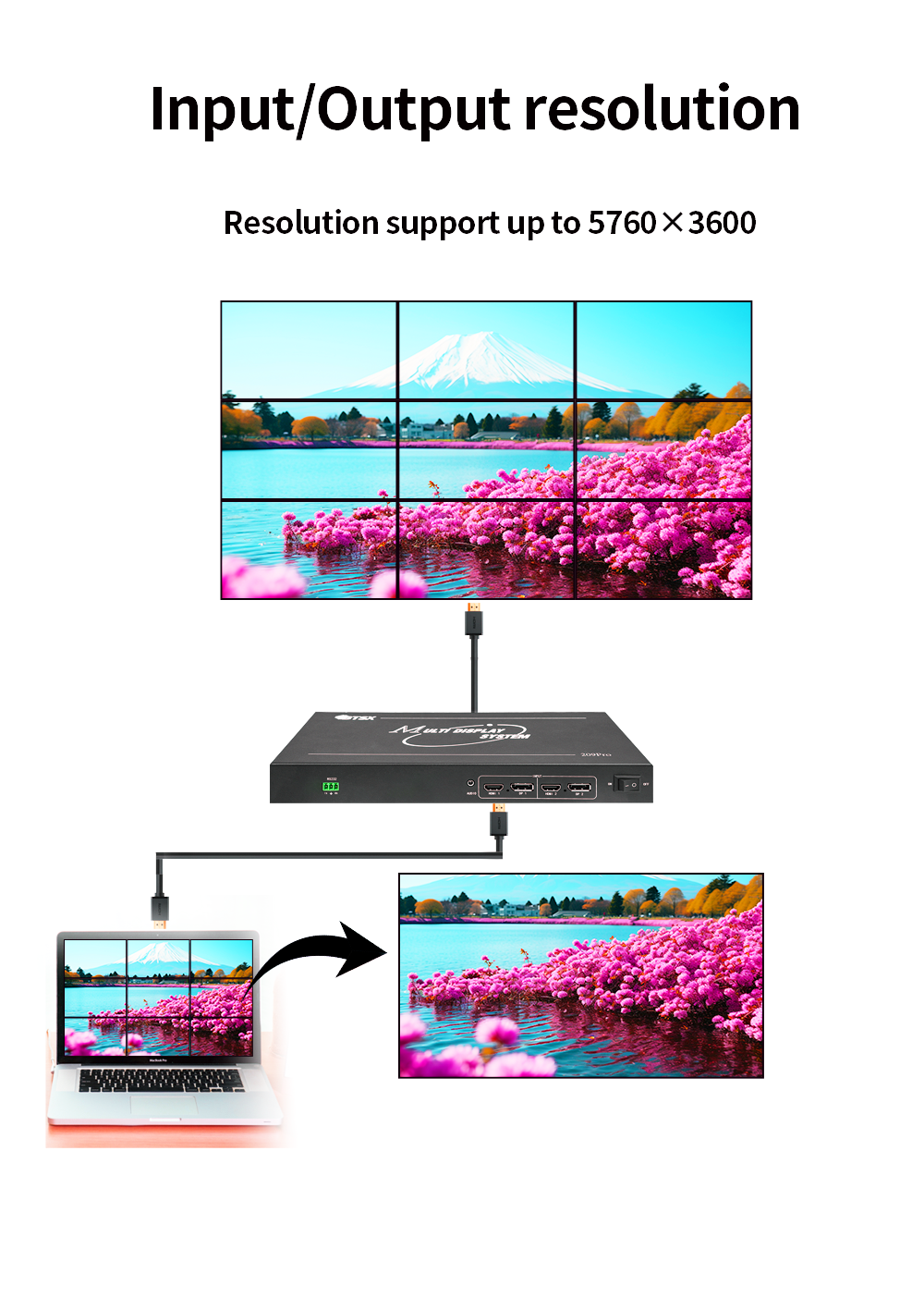

⇒A single input channel supports maximum resolution within 3840x2400@60Hz bandwidth, and the input resolution is downward compatible according to the multiple of the splicing mode for the output single screen;

⇒Output single channel maximum support 1920x1200@60Hz downward compatible with conventional resolution (output support customized special resolution)；

⇒Fixed EDID design, can customize the input resolution;

⇒Support 1xN, Nx1, NxN, point to point, no stretch, no deformation, no compression, clear picture;

⇒Diversified application scenarios, strong compatibility. It supports computers, Android boxes, game consoles and other devices as input sources, and can be used with all kinds of video extenders or splitters for more complex scene applications.

⇒Welcome to contact us to consult about the products required by your project!

FEATURES AT A GLANCE

4K60 Video Wall Controller Seamless Switching Extension Slicing Roaming 4 in 9 out 1X2 2X2 1X3 3X3 HDMI Port

4K60 Video Wall Controller with 9 HDMI Outputs and RS232 IR Web Control for Multi-Screen Display

Display Video Processor 2X3 2X4 3X1 4X1 4X2 Roaming HDMI Switch for Audio Seamless Switching

PRODUCT SPECIFICATIONS

Product Name			BIT - MSE - 209Pro
HDCP			HDCP2.2
Input interface type			2 - way HDMI 2.0/DP 1.2 (choose one of two)（≤ 5 meters）
Input interface maximum video pixel frequency			600MHz
Input Maximum resolution			3840x2160@60Hz/3840x2400@60Hz 5760 x 3240 @ 3 0Hz/7680x 216 0@ 3 0Hz (4Kx2K@60Hz Resolution within bandwidth)
Input color format			RGB888, 24bit
Output interface type			9 - way HDMI 1.3
Output interface maximum video pixel frequency			165MHz
Output resolution			1920x1080@60Hz 1920x 1 20 0@60 H z (customizable)
Audio			HDMI output, 3.5mm audio port (audio separation
Power supply			DC 12V/ V/ 2A
Power comsumption			22 W
Storage/working temperature			- 10 to 50 º C/0 to 50 º C
Product size			Length 300mm* width 142mm* height 35mm
Net weight			1.8 KG
Accessories list			12V/2A power supply 1, HDMI/DP cable 2, certificate 1, warranty card 1
After-saleswarranty			3 yearws warranty

PRODUCT CONFIGURATION

Arbitrary Picture Overlay Audio Separation Supports EDID Management Reading Modification and Customization of EDID

Video Processor 4K60 UHD Video Wall Controller 4-channel Signal Input Switching 9 Channel Output Port Expansion

Company Profile

Support Input and Output Rotation
